Volvo Penta launches IMO Tier III concept for D8 engines
by Volvo Penta Oceania on 12/06/2019 8:38 AM
Designed for heavy duty propulsion and genset applications, Volvo Penta has revealed a D8 engine and after treatment system that meets the International Maritime Organization (IMO) Tier III at the Nor-Shipping international exhibition and conference in Norway.
Volvo Penta is launching a new D8 engine and after-treatment concept to comply with the International Maritime Organization (IMO) Tier III standards. The IMO Tier III regulation will stipulate a reduction in nitrogen oxides (NOx) emitted of around 75 per cent – depending on engine size – when compared to current IMO Tier II levels. The new emissions restrictions for vessels entering the Baltic Sea and North Sea will be implemented in 2021.
The new D8 will be certified to comply with these newest IMO III emission regulations, as well as international emissions standards – US EPA Tier 3, China 1 & 2, and NRMM IWW Stage V – making it a truly global solution. The product will be released in two steps: the first release will be IMO II, EPA, and China legislations and – in mid-2020 – the second release will result in compliance with IMO III and European inland waterways regulations.
The D8 inherits its IMO III technology from its big sister the D13, which has had widespread market success.
“The IMO III solution for the D13 has proven itself in tough marine conditions, having undergone 35,000 hours of field-testing prior to its launch in 2018,” explains Thomas Lantz, Product Planning Manager, Marine Commercial at Volvo Penta. “The new D8 IMO III engine has been developed to sustain high back pressure while also maintaining efficiency and drivability. The engine will have the same footprint as current models, and the exhaust after-treatment system works with both Volvo Penta’s Electronic Vessel Control (EVC) and Marine Commercial Control (MCC) systems.”
The IMO III technology is based on the company’s own experience alongside that of the Volvo Group in leading selective catalytic reduction (SCR) technology, resulting in a system that is dedicated to heavy-duty marine operations.
“We’ve opted for the use of SCR because it keeps the engine working efficiently with optimized fuel consumption and keeps the power up to the right level,” says Lantz. “SCR is the ideal solution for marine customers.”
The NOx Emission Control Area (NECA) for the Baltic and North seas follows the NOx designation by IMO for North American and Caribbean regions and applies to most engines with an output of over 130kW. All of these areas are designated Sulfur Emission Control Areas (SECA) regulating maximum sulfur content in the fuel to 1,000 ppm.
Volvo Penta initially launched its IMO III solution for its 13-liter models, and subsequently made it available for a host of marine propulsion and genset applications. The D8 engine boasts a power output up to 313kW for inboard and auxiliary applications, and up to 265kW when used as a genset. In both roles, the reduction in NOx will go from currently permitted levels of 7.7 g/kWh down to 2 g/kWh
Optimized for marine

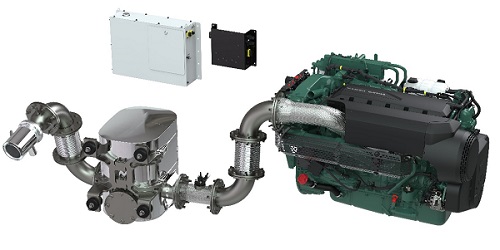

Volvo Penta’s IMO Tier III solution has exceeded stipulated emissions limits in reducing NOx by up to 75 per cent. It is a simple robust design, with an SCR solution that has been adapted and optimized for marine customers. Exhaust gases are mixed with UREA/DEF (diesel exhaust fluid) in the SCR unit. There is a separate UREA injector pipe. The three alternative exhaust outlets are designed for marine standards and will provide customers with different possible SCR configurations, leading to ease of installation. Ease of use is also central to the design of this complete system including DEF tank and sensors to check on the quantity and quality of UREA. The system also includes a dosage pump and control unit.
Additional benefits of Volvo Penta’s IMO Tier III solution for the D8:
- Optimized for sulfur fuel up to 1,000 ppm.
- Single box, mixed in smaller muffler.
- Ability to use either 32% or 40% urea.
- SCR acts as a silencer to reduce noise by up to 35 dBA.
- 5-inch robust bolt flanges.
- Three 5-inch outlets
- Smaller electric UREA pump, no air feed needed.
“The D8 is even more compact than the D13 and offers and has an additional outlet, making it easy for customers to adapt to their own requirements,” adds Lantz. “This is a solution that is easy to install, easy to operate and easy to service.”
