The IBLWP Weatherproof Batcher offered by Innovec Controls

by ANZIDECC Directory on 23/12/2020 12:55 AM

Batch Controller,Innovec Controls

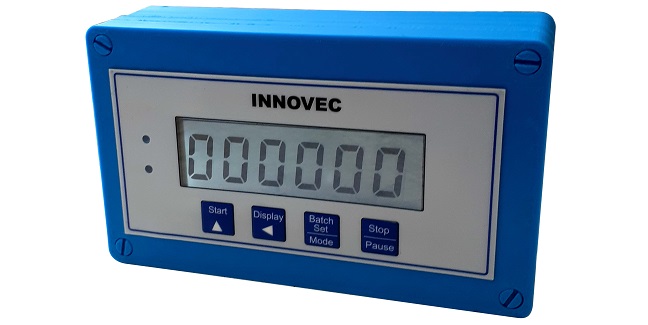

The IBLWP Dual Stage Batch Controller for liquids, with a 6 digits LCD display and an integrated White LED backlight in a wall mount IP65 enclosure.

The IBLWP Batch Controller is a universally AC or 12-40VDC powered batch controller for liquids that incorporates a six (6) digit 18mm backlit LCD (liquid crystal display). The instrument can be configured for dual stage batching and can function in batch up or down. The IBLWP provides the excitation power supply for the flow sensor


  • 6 characters 18mm digit height - easy to read LCD
  • Wide viewing angle
  • 5 meter viewing distance

Configuration by the User

  • Batch in local or remote mode
  • Simple touch switch configuration with English statement prompts
  • Dip switch input selection for industry standard flow sensors
  • Low flow alarm
  • Automatic over run compensation
  • Programmable end of batch signal
  • End of batch programmable pulse 0.0 – 99.9 seconds
  • Programable delay on relay two, start and pre-stop


  • Wall Mount 95 x 170 x 70mm IP65 Housing
  • -20⁰ to 70⁰ Celsius environmental parameters

Power Supply

  • Universal AC Supply
  • Adjustable sensor supply of 8-20VDC
  • Pluggable screw terminal


  • Single or two stage batching
  • Low Cost – High performance
  • Australian manufacture

For additional information please visit www.innovec.com
