Indra: designed integrated Air Defence solutions for airspace surveillance and control
by Indra Australia Pty Ltd on 28/11/2022 7:04 AM

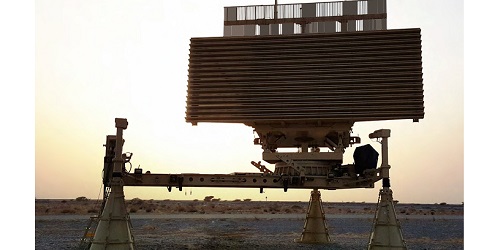

Lanza Radar LTR-20 – Medium Range Tactical Radar
The LANZA LTR-20 radar belongs to the family of long-range sensors developed by Indra. It corresponds to the third generation of solid-state, electronic scanning radars aimed at covering modern-day air Defence needs.
It's the member of the LANZA family with the best mobility features and a selectable range that allows it to operate from gap filler (range of 60NM, rotation speed 1 2/15 rpm) to long range radar (up to 200 NM, rotation speed of 4/5 rpm).
Mission: Air Defence (Medium range up to Gap-filling coverage) and Air Policy (illegal traffic interception)
200 NM/ 120 NM/ 60 NM instrumented range
NATO Compatible
Tactical. Deployable in less than 2 hours
Refresh rate from 4 to 15 rpm
It is especially designed to form part of a multi-radar network, allowing operation via local or remote control.
The LANZA LTR-20 incorporates the latest technologies to counteract natural interference or interference caused by countermeasure elements and to achieve a high target detection capacity.
It can be supplied as a stationary (suited to install on a fixed site with or without radome) or transportable configuration, with both having the same benefits.
The main feature of this new radar is polyvalence and flexibility, based on a modular, repetitive and redundant design that guarantees easy maintenance and a minimum number of spare parts.
• L Band Radar
• Planar Array Antenna and Distributed Solid State Transmitter
• Long and Medium Range 3D Coverage
• Pencil Beam Scanning Technique
• Dual Frequency Diversity
• Highly-reliable modular architecture
• Digital Signal and Data Processing
• Anti-clutter Capacities
• Electronic Protective Measures (ECCM, EPM)
• Automatic Calibration
• Automatic Fault Detection and Isolation (BITE)
• Simplified & "User-Friendly" Operational Control
For additional information please visit www.indracompany.com/en
